Features:

• Bezelless Design
• Natural Colour Enhancer
• Noise Reduction
• DTS Virtual:X
• Dolby Audio
• Game Mode
• AI Sports Mode
• VIDAA Smart OS
• WiFi Built-in

  Commercial model
  32A4K
  Factory model
  32A33EXVT
  Factory
  Qingdao
  Description

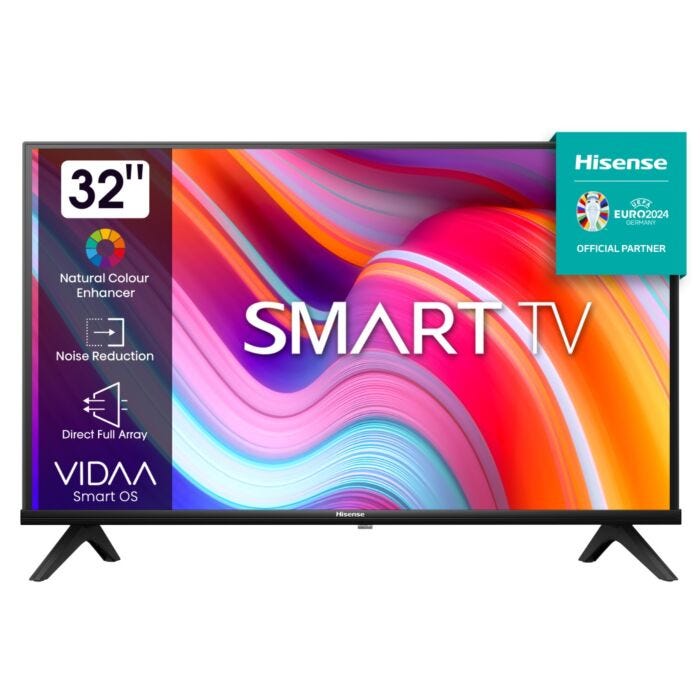

  80cm (32" ) Direct LED Television
  Document

  Specifications form version
  HA220120
  Circulation
  Restricted, internal use only
  Status
  Confirmed
  Revision number
  1
  Date
  2022/01/20
  Issued by
  Al


  Image   display

  Panel   manufacturer
  Hisense
  Panel   model
  LCM: JHD315H1H51-T0L2B1, Open Cell : T320XVN02.H
  Active   display area, horizontal dimension
  697,685
  Active   display area, vertical dimension
  392,256
  Screen   size (rounded to nearest integer)
  80
  Screen   size (rounded to nearest integer)
  32
  Display   technology
  LCD/ LED lit
  Backlight   source
  Direct LED
  Resolution   (Horiz x Vert)
  1366*768
  Screen   curvature radius
  -
  Colour   depth
  8bit
  Image   refresh frequency
  60
  Smooth   motion rate
  60
  3D image
  -
  Typical   brightness of white
  250
  Native   contrast ratio
  3000 : 1
  Viewing   Angle (Horiz / Vert)
  178/ 178
  Quantum   dot
  No
  Wide   colour gamut
  No
  KSF   phosphor
  No
  UHD   Premium
  No
  Response   Time
  8
  Connectivity

  RF- Radio frequency input
  1
  AV input
  1
  AV output
  0
  USB interface type 3.0 (Qty /   List….)
  0
  USB interface type 2.0 (Qty /   List ….)
  2/ USB1, USB2
  Optical digital audio output   (SPDIF)
  1
  Earphone jack
  1


  HDMI   ports

  HDMI inputs
  2
  HDMI type 8K@60Hz
  No
  HDMI type 4K@60Hz with HDCP   version 2.2
  No
  HDMI 2.1 compliant input (4K@120Hz)
  No
  Enhanced Audio Return Channel   ( eARC)
  Yes
  CEC- Consumer Electronics   Control via HDMI
  Yes
  Smart   TV

  Ethernet port (RJ45   connector)
  1
  Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..}
  b, g, n
  Wi-Fi bands
  2,4
  DLNA compliance
  Yes
  Bluetooth / BT version
  No / No
  Anyview ( Screen Sharing)
  Yes
  BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay)
  Iview, SBS on Demand, 7 Plus, 9 Jumpin
       (Tenplay available from Playsore)
  Installed Applications   {List ……}
  Netflix/Youtube/Prime   Video/Foxtel/Stan/ABC iview/Kayo/Tubi/SBS ON DEMAND/Facebook Watch/NBA
  Freeview Plus - HbbTV 2.0
  Yes
  Web browser [Chrome | Opera |   Other]
  Odin


  Tuner/   Broadcasting

  Digital broadcating (DVB-T /   DVB-T2)
  Yes / Yes
  Video decoder (MPEG2 / MPEG 4)
  Yes / Yes
  LCN- Logical channel number   and DTV Service name support
  Yes
  Teletext / Teletext signal interruption (TAB   compliant)
  Yes / Yes
  Subtitles
  Yes
  EPG- Electronic programming   guide, 7 days for all services
  Yes
  Audio description (vision   impairment aid)
  Yes
  Parental rating lock
  Yes
  Analog Tuner
  Yes
  Image   processing

  Backlight control
  No
  Light sensing
  No
  Dynamic backlight control
  No
  Frame rate control
  No
  Variable Refresh Rate (VRR)
  No
  FreeSync
  No
  Auto Low Latency Mode(ALLM)
  No
  Local dimming/ controllable   zones
  No
  Zoom function settings
  Auto /16:9 / 4:3 /21:9/ Movie   Zoom/Dot to Dot
  HDR - High Dynamic Range for   luminance (DMP / Netflix / HDMI)
  No / No / No
  HDR system (HDR10 / HDR10+ /   Dolby Vision)
  No / No / No
  HLG (Hybrid Log-Gamma) for   HDR
  No
  HEVC (H.265) decoder
  No
  Motion enhancement and   compensation (MEMC)
  No
  Picture mode
  Standard， Cinema Day, Cinema Night, Dynamic, Sports
  Sound

  Audio power output per channel
  6
  Number of speakers (Tweeter /   Midrange / Woofer)
  2 /0 /0
  Automatic volume level (AVL)
  Yes
  Audio equalizer
  Yes
  Dolby Digital
  Yes
  Audio enhancement -Type {SRS,   BBE, SAP, DBX-TV….}
  DTS Virtual X
  Lip-sync adjustment
  Yes
  Sound mode
  Stand，Cinema…….
  Features

  On/off timer
  Yes
  Power off if no signal
  Yes
  Sleep timer
  Yes
  Program lock
  Yes
  OSD transparency control
  Yes
  User interface
  VIDAA U7
  Software version OSD   indication
  Yes
  Legal requirements:   Disclaimer / Acceptance of Terms
  Yes / Yes
  Favourite channels list
  Yes
  Electronic point of sales   (E-POS)
  Yes
  OTA- Over the air software   updates
  Yes
  Voice command
  No（ not available from RC, BUT   CAN SUPPORT VOICE REMOTE BY VIDAA APP, also but only support Alexa AVG）
  Screen mirroring {Miracast,   Anyview Cast, ...}
  Screen Sharing
  Smartphone remote control   application {VIDAA app, ...}
  Yes
  Replaceable demo video for   Store mode
  Yes
  Remote control via serial   port
  No
  USB   media player

  Personal Video Recorder
  Yes
  Time Shift
  Yes
  DTV Recording (EPG scheduling   / start from Standby )
  Yes / Yes
  DivX decoder
  No
  MPEG4 (H.264) / H.265 decoder
  Yes / Yes
  DMP- Digital media player   content (Music / Video / Photos / Text)
  Yes / Yes / Yes / No
  DMP Auto-play
  No
  DMP for UHD content via USB
  Yes
  DMP File allocation table   (FAT / FAT32 / exFAT / NTFS)
  Yes / Yes / No / Yes
  PVR File allocation table (FAT / FAT32 / exFAT   / NTFS)
  Yes / Yes / No / Yes
  Hotel   lock

  Protected Hotel lock submenu   (Password / fixed code)
  No / Yes
  Clone function for programs,   sound and image settings.
  Yes
  Sub-menu lock, including   tuning lock
  Yes
  Keyboard lock
  Yes
  Maximum volume lock
  Yes
  Power on volume
  Yes
  Power on, apply default   sound/image settings
  No
  Power on source selection
  Yes
  Power on RF channel selection
  Yes
  Power on mode (On / Standby /   Last)
  Yes / Yes / Yes
  Inputs access (Enable /   Disable)
  Yes
  Hardware

  Processor / Cores
  NT72690TBG-8C2K
  Dual Tuner
  No
  Colour (Front bezel, rear,   stand)
  Black / Black / Black
  Speakers mounted in enclosure
  Yes
  Mains power switch
  No
  Swivel base
  No
  Compact packaging
  Yes
  Supply range [Voltage / Frequency ]
  100 ~ 240V / 50Hz
  Standby consumption
  < 0.5W
  Maximum time delay Power On to   sound an image
  30
  Installation

  Stand area (Width / Depth)
  688×186
  Wall mount dimensions (Horiz   x Vert)
  100×200
  Wall mount, screw thread
  M6/ 10mm
  VESA compliance
  Yes
  Detachable power cord
  No
  Power cord length
  155
  Accessories

  Remote controller (Technology   / Part number )
  IR /EN2V36H
  Battery (size / quantity)
  AAA / 2
  User manual (Available online)   / Quick setup guide (Print)
  1 / 1
  Warranty [In User manual | In   separate sheet]
  In separate sheet
  Skype camera (Qty / Part   number)
  -
  3D glasses type [Passive | Shutter] / Link [RF | IR |   BT]
  -
  3D glasses (Qty / Part   number)
  -
  Dimensions

  Dimensions with stand (W x H x   D)
  726×479×186
  Dimensions without stand (W x   H x D)
  726×430×85
  Carton box dimensions (W x H x   D)
  848×122×515
  Net weight (with stand /   without stand)
  3.8 Kg/3.7 Kg
  Gross weight
  5.6 Kg
  Container load (20ft / 40ft /   40ft HC)
  512/1048/1310
  Licensing   and certification

  EMC- Electromagnetic   Compatibility
  Yes
  CB- Electrical safety
  Yes
  HDMI
  Yes (Hisense internal test)
  Dolby Digital
  Yes
  MEPS- Test report
  Yes
  ROHS
  No
  Electrical safety conformity for Australia
  Yes
  Documentation

  CB report and certificate
  Yes
  EMC report and certificate
  Yes
  Power cord, plug and connector   Australian safety approval
  Yes
