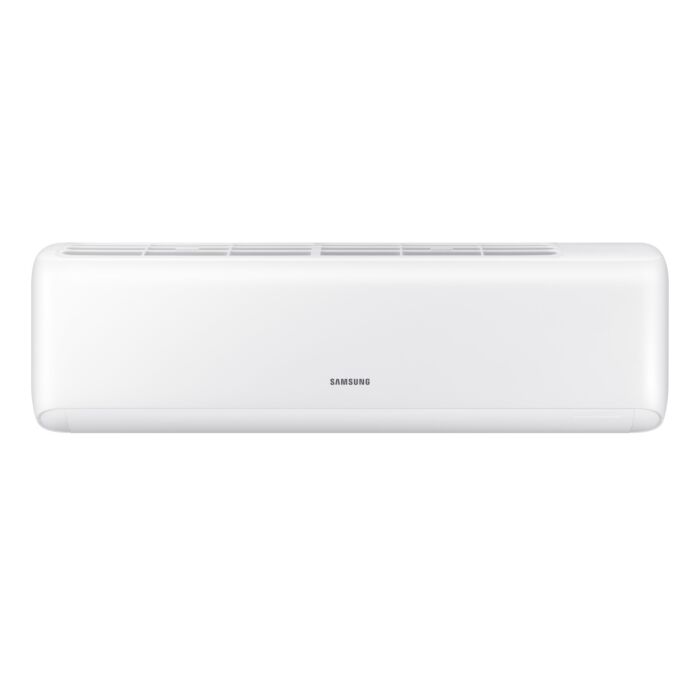

Samsung 24000BTU Non Inverter Air Conditioning - AR24CQHG

AR3000 Non-inverter air conditioner
· Fast Cooling - Rapidly reaches the desired temperature,
  so you feel comfortably cool or warm faster.
· Good Sleep Mode - Creates the ideal conditions for a
  good night’s sleep.
· Auto Mode - Auto restart function and indoor
  temperature display.
· Dehumidification - Extracts the moisture from the air
  while significantly cooling it at the same time.
· HD Filter - Prevents fine dust particles, allergens, and airborne
  contaminants from spreading out in the air.
· 2-Way Auto Swing - Automatically controls the air flow direction,
  so it evenly distributes cool/warm air to ensure maximum comfort.
· Hidden Display

AR3000 air conditioner

A reliable, effective and affordable air conditioner with Fast Cooling,
2-Way Auto Swing and Good Sleep mode.
Fast Cooling
Rapidly reaches the desired temperature,
so you feel comfortable faster.

Cool a whole room rapidly and effectively. Fast
Cooling mode operates with the fastest fan speed,
before slowing down. So it cools or heats much
faster and reaches the desired temperature in the
shortest time. It’s ideal for immediate relief from
the heat outside.

HD Filter
Prevents fine dust particles and allergens from spreading out in the air.

Make sure that the air you breathe is always
clean and fresh. The HD Filter is really effective at
capturing dust, airborne contaminants and allergens,
such as pollen, mold spores and pet dander. And it’s
also washable, so all you need to do is give it a quick
rinse in water and then reuse it.

Good Sleep
Creates the ideal conditions for a good
night’s sleep.
Enjoy a great night’s sleep – every night! Good
Sleep mode automatically controls and fine-tunes
the temperature to create the ideal conditions for
each stage of the sleep cycle. So you gain precious
minutes of sleep and feel fully refreshed. And it
also uses less energy than normal cooling.

2-Way Auto Swing

Automatically controls the air flow direction, so it evenly distributes cool/warm air to ensure maximum comfort.
Create a comfortable environment with an
even temperature in every corner. The 2-Way
Auto Swing function automatically controls
the air flow direction, so it’s quickly and evenly
distributed across the room. It can expel cool or
warm air further and in every direction to ensure
maximum comfort.

DuraFin™ Plus
Maintains the performance and efficiency of the Heat Exchanger.
Stay comfortably cool for much longer. The
Fin protection is made of corrosion-resistant
material to protect the condenser from
rusting, which helps to maintain the optimal
performance of the Heat Exchanger. Its superb
corrosion-resistance was proven using the Salt
Spray Test (SST) for 480 hours.

Model Code -  AR24CQHGAWK/FA
Capacity (Cooling, Btu/hr) - 22000 Btu/hr
Capacity (Heating, Btu/hr) - 22000 Btu/hr
Capacity (Cooling, kW) - 6.45 kW
Capacity (Heating, kW) - 6.45 kW

Energy Efficiency EER (Cooling, W/W) - 3.21 W/W
COP (Heating, W/W) -3.58 W/W
EER (Cooling, Btu/hW) -10.95 Btu/hW
COP (Heating, Btu/hW) - 12.22 Btu/hW
Energy Efficiency Class (Grade) -  (C) A / (H) A+

Noise Level Noise Level (Indoor, High/Low, dBA) - (C)46/38 (H)47/37 dBA
Noise Level (Outdoor, High/Low, dBA) - 58 dBA

Electrical Data Power Source(Φ/V/Hz) - 1 / 220~240 / 50
Power Consumption(Cooling, W) - 2009 W
Power Consumption(Heating, W) - 1800 W
Operating Current(Cooling, A) - 8.9 A
Operating Current(Heating, A) - 7.9 A

Physical specification Gross Dimension (Indoor, WxHxD, mm*mm*mm) - 1147×351×418 mm
Gross Dimension (Outdoor, WxHxD, mm*mm*mm) - 1032×737×456 mm
Net Dimension (Indoor, WxHxD, mm*mm*mm) - 1078×333×246 mm
Net Dimension (Outdoor, WxHxD,mm*mm*mm) - 958×660×402 mm
Gross Weight (Indoor, kg) - 18 kg
Gross Weight (Outdoor, kg) - 52.4 kg
Net Weight (Indoor, kg) - 15.0 kg
Net Weight (Outdoor, kg) - 49 kg
Loading Quantity (20/40/40Hft without Pipe) - 54/110/135

Technical Information Piping Length (Max, m) - 25 m
Piping Height (Max, m) -10 m
SVC Valve (Liquid (ODxL)) - φ6 (1/4")
SVC Valve (Gas (ODxL)) -) φ16 (5/8")
Moisture Removal (l/hr) - 2.00 l/hr
Air Circulation (Cooling, m3/min) 1350 m3/min
Refrigerant (Type) R410A R410A R410A R410A
Refrigerant (Charging, kg) - 1.10 kg
Low Ambient (Cooling, ºC) - 18～43 ℃
Low Ambient (Heating, ºC) - -7～24 ℃

Air Flow Air Direction Control (Up/Down) - Auto
Air Direction Control (Left/Right) - Manual
Air Flow Control Step (Cool/Fan) - 3 Step
Air Purification PM 1.0 Filter- No
Tri Care Filter - No
Easy Filter Plus (Anti-Bacteria) - No
Auto Clean (Self Cleaning) - No

Convenience SmartThings - No
AI Auto Cooling - No
Motion Detect Sensor - No
Freeze Wash - No
Filter Cleaning Indicatior - No
Indoor Temp. Display - No
Display On/Off - Yes
Beep On/Off - No
24-Hour Timer - Yes
Auto Changeover- No
Auto Restart - Yes
Operating Mode Auto Mode - Yes
Fast Cool - Yes
Good Sleep -s Yes
Dehumidification - Yes
Fan Mode - Yes
Quiet - No
Smart WiFi Embedded - No
App Connectivity SmartThings App Support - No
