Specification

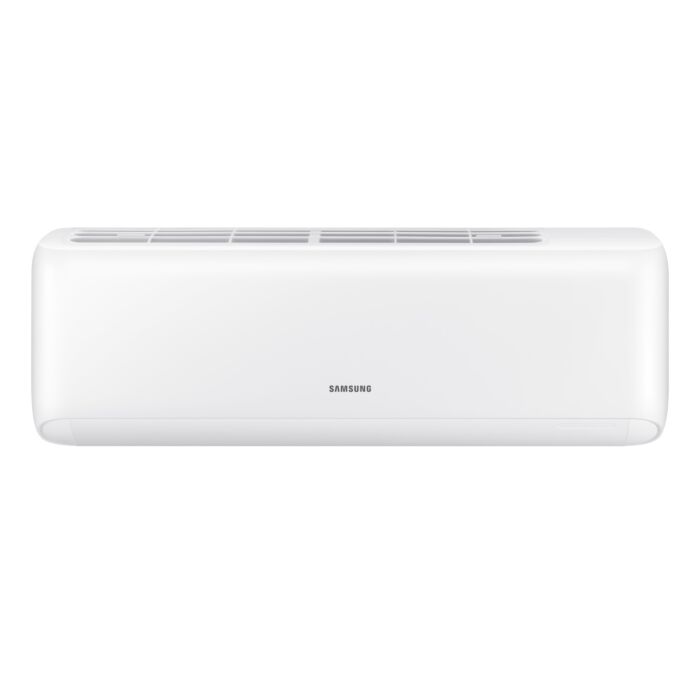

 AR3000 Non-inverter Air Conditioner
 · Fast Cooling - Rapidly reaches the desired temperature, so you feel comfortably cool or warm faster.
 · Good Sleep Mode - Creates the ideal conditions for a good night’s sleep.
 · Auto Mode - Auto restart function and indoor temperature display.
 · Dehumidification - Extracts the moisture from the air while significantly cooling it at the same time.
 · HD Filter - Prevents fine dust particles, allergens, and airborne contaminants from spreading out in the air.
 · 2-Way Auto Swing - Automatically controls the air flow direction, so it evenly distributes cool/warm air to ensure maximum comfort.
 · Hidden Display

 Fast Cooling
 Rapidly reaches the desired temperature, so you feel comfortable faster.
 Cool a whole room rapidly and effectively. Fast
 Cooling mode operates with the fastest fan speed,
 before slowing down. So it cools or heats much
 faster and reaches the desired temperature in the
 shortest time. It’s ideal for immediate relief from
 the heat outside.

 HD Filter
 Prevents fine dust particles and allergens from spreading out in the air.
 Automatically controls the air flow direction, so it evenly
 Prevents fine dust particles and allergens
 from spreading out in the air.
 Make sure that the air you breathe is always
 clean and fresh. The HD Filter is really effective at
 capturing dust, airborne contaminants and allergens,
 such as pollen, mold spores and pet dander. And it’s
 also washable, so all you need to do is give it a quick
 rinse in water and then reuse it.

 Good Sleep
 Creates the ideal conditions for a good night’s sleep.
 Prevents fine dust particles and allergens from spreading out in the Automatically controls the air flow direction, so it evenly
 Enjoy a great night’s sleep – every night! Good
 Sleep mode automatically controls and fine-tunes
 the temperature to create the ideal conditions for
 each stage of the sleep cycle. So you gain precious
 minutes of sleep and feel fully refreshed. And it
 also uses less energy than normal cooling.

 2-Way Auto Swing
 Automatically controls the air flow
 direction, so it evenly distributes cool/
 warm air to ensure maximum comfort.
 Make sure that the air you breathe is always clean and fresh. The HD
 Filter is really effective at capturing dust, airborne contaminants and
 allergens, such as pollen, mold spores and pet dander. And it’s also
 washable, so all you need to do is give it a quick rinse in water and
 Create a comfortable environment with an
 even temperature in every corner. The 2-Way
 Auto Swing function automatically controls
 the air flow direction, so it’s quickly and evenly
 distributed across the room. It can expel cool or
 warm air further and in every direction to ensure
 maximum comfort.

 DuraFin™ Plus
 Maintains the performance and efficiency of the Heat Exchanger.
 Stay comfortably cool for much longer. The
 Fin protection is made of corrosion-resistant
 material to protect the condenser from
 rusting, which helps to maintain the optimal
 performance of the Heat Exchanger. Its superb
 corrosion-resistance was proven using the Salt
 Spray Test (SST) for 480 hours

 Capacity

 Capacity (Cooling, Btu/hr): 8871 Btu/hr
 Capacity (Heating, Btu/hr): 9383 Btu/hr
 Capacity (Cooling, kW): 2.60 kW
 Capacity (Heating, kW): 2.75 kW

 Energy Efficiency

 EER (Cooling, W/W): 3.12 W/W
 COP (Heating, W/W): 3.55 W/W
 EER (Cooling, Btu/hW): 10.64 Btu/hW
 COP (Heating, Btu/hW): 12.12 Btu/hW
 Energy Efficiency Class (Grade): (C) B / (H) A+

 Noise Level

 Noise Level (Indoor, High/Low, dBA): (C)36/26.5 (H)34/26.5 dBA
 Noise Level (Outdoor, High/Low, dBA): 51 dBA

 Electrical Data

 Power Source(Φ/V/Hz): 1 / 220~240 / 50
 Power Consumption(Cooling, W); 833 W
 Power Consumption(Heating, W): 774 W
 Operating Current(Cooling, A): 3.8 A
 Operating Current(Heating, A): 3.6 A

 Physical specification

 Gross Dimension (Indoor, WxHxD, mm*mm*mm): 911×290×343 mm
 Gross Dimension (Outdoor, WxHxD, mm*mm*mm): 794×615×376 mm
 Net Dimension (Indoor, WxHxD, mm*mm*mm): 835×275×200 mm
 Net Dimension (Outdoor, WxHxD,mm*mm*mm): 732×555×330 mm
 Gross Weight (Indoor, kg): 11.2 kg
 Gross Weight (Outdoor, kg): 30.0 kg
 Net Weight (Indoor, kg): 9.0 kg
 Net Weight (Outdoor, kg): 27.5 kg
 Loading Quantity (20/40/40Hft without Pipe): 90/212/246

 Technical Information

 Piping Length (Max, m): 15 m
 Piping Height (Max, m): 10 m
 SVC Valve (Liquid (ODxL)): φ6 (1/4")
 SVC Valve (Gas (ODxL)): φ9.52 (3/8")
 Moisture Removal (l/hr): 0.80 l/hr
 Air Circulation (Cooling, m3/min): 600 m3/min
 Refrigerant (Type): R410A
 Refrigerant (Charging, kg): 0.70 kg
 Low Ambient (Cooling, ºC): 18～43 ℃
 Low Ambient (Heating, ºC); -7～24 ℃

 Air Flow

 Air Direction Control (Up/Down): Auto
 Air Direction Control (Left/Right): Manual
 Air Flow Control Step (Cool/Fan): 3 Step

 Air Purification

 PM 1.0 Filter: No
 Tri Care Filter: No
 Easy Filter Plus (Anti-Bacteria): No
 Auto Clean (Self Cleaning): No

 Convenience

 SmartThings: No
 AI Auto Cooling: No
 Motion Detect Sensor: No
 Freeze Wash: No
 Filter Cleaning Indicatior: No
 Indoor Temp. Display: No
 Display On/Off: Yes
 Beep On/Off: No
 24-Hour Timer: Yes
 Auto Changeover: No
 Auto Restart: Yes

 Operating Mode

 Auto Mode: Yes
 Fast Cool: Yes
 Good Sleep: Yes
 Dehumidification: Yes
 Fan Mode: Yes
 Quiet: No

 Smart

 WiFi Embedded: No

 App Connectivity

 SmartThings App Support: No
