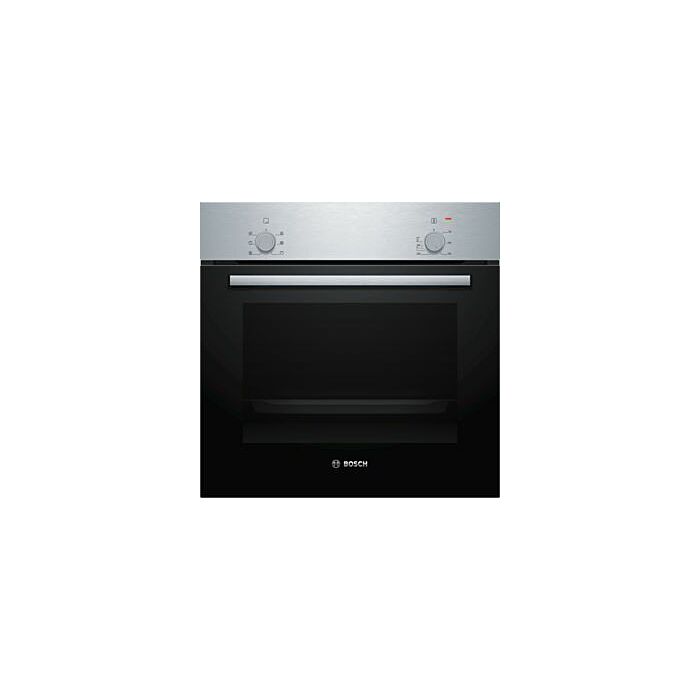

Bosch Series 2 Built-in Oven - HBF010BR1Z
Type of oven / heating system:
- Oven with 5 heating methods: Hot air cooking, Conventional top and bottom heat, Hot air grilling, Defrost setting, Variable full width grill
- Temperature range 50 °C - 270 °C
- Cavity volume: 66 l
Design:
- Rotary Control
Cleaning:
- Sheet metal door
Comfort:
- Drop down door
- Rapid heating-up
- Halogen interior lighting - Integral cooling fan
- Bar handle
Accessory:
- 1 x enamel baking tray, 1 x combination grid, 1 x universal pan
Technical Info:
- Length of mains cable: 100 cm
- Nominal voltage: 220 - 240 V
- Total connected load electric: 3.3 KW
- Energy efficiency rating (acc. EU Nr. 65/2014): A
Energy consumption per cycle in conventional mode: 0.98
kWh
Energy consumption per cycle in fan-forced convection mode: 0.82 kWh
Number of cavities: 1
Heat source: electrical
Cavity volume: 66 l
Dimensions:
- Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
- Niche dimension (hxwxd): 560 mm - 568 mm x 575 mm - 597 mm x 550 mm
- “Please reference the built-in dimensions provided in the installation drawing”
General Information
- Number of door glasses: 2
Technical data
Built-in / Free-standing : Built-in
Integrated Cleaning system : No
Required niche size for installation (HxWxD) : 575-597 x 560-568 x550mm
Dimensions : 595 x 594 x 548 mm
Dimensions of the packed product (HxWxD) : 660 x 681 x 660 mm
Control Panel Material : Stainless steel
Door Material : Glass
Net weight : 31.0 kg
Usable volume of cavity : 66 l
Cooking method : Conventional heat, Defrost, Full width variable grill, Hot Air, Hot air grilling
First cavity material : Other
Number of interior lights : 1
Approval certificates : not relevant
Length electrical supply cord : 100 cm
Interior Lights - cavity 1 : 1
Included accessories : 1 x enamel baking tray, 1 x combination grid, 1 x universal pan
Broil Element Wattages cavity 1 : 2800 W
Energy efficiency rating : A
Energy consumption per cycle conventional (2010/30/EC) : 0.98 kWh/cycle
Energy consumption per cycle forced air convection (2010/30/ EC) : 0.82 kWh/cycle
Energy efficiency index (2010/30/EC) : 98.8 %
Connection Rating : 3300 W
Fuse protection : 16 A
Voltage : 220-240 V
Frequency : 50 Hz
Plug type : South Africa plug
Energy input : Electric
Approval certificates : not relevant
Required cutout/niche size for installation (in) : x x
Dimensions of the packed product : 25.98 x 25.98 x 26.81
Net weight : 68.000 lbs
Gross weight : 73.000 lbs
Length electrical supply cord : 100 cm
Net weight : 31.0 kg
Gross weight : 33.2 kg
Included accessories
1 x enamel baking tray 1 x combination grid 1 x universal pan
SKU | 77549 |
---|---|
Color | Silver |
Brand | Bosch |
Blue Tag | No |
MPN | HBF010BR1Z |
EAN | 4242005317974 |
